SNGs

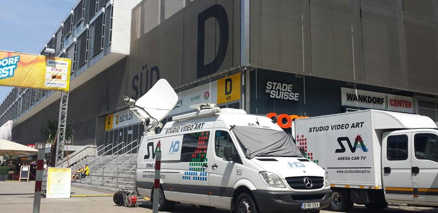

#SNG02HD or #OB4HD is a medium size SNG or a small size OB Van, or both. Perfect for your HD uplink or for a small 6-7 camera production, this SNG has travelled extensively through Europe for most of our clients.

SNG - ROU-038

Antenna

ERA MAS1900 - 1.9m diagonal diamond shape

HPA

2x 400W TWTA NDSatCom

Signal monitoring

Rohde & Schwarz FS-300

Modulators/Encoders

Tandberg E5740 / Ericsson AVP 3000 / Tandberg EN8090

Receivers

Ericsson RX1290

Redundancy Control

1+1 or 2+1 RCU5000 NDSatCom

Secondary Dish

Kathrein CAP900

Power Supply and UPS

12 KVa generator and 3x 3.5KVa UPS

VIDEO Specs

Cameras

6x IKEGAMI HDK-79EXIIIa 16 bits

Video switcher

FOR-A Hanabi HVS-110

Router

BLACK MAGIC DESIGN 20x20

Glue

OPENGEAR, AJA, Snell

Multiviewers

FOR-A

Video and replay servers

1x TIGHTROPE Zeplay

1x NEWTEK 3Play 425

XDCAM Recorders

1x SONY PMW-EX30 XDCAM (SxS cards)

SSD & USB Recorders

2x Blackmagic Design Hyperdeck Studio

2x LGZ USB Recorder

DVD Recorders

1x DVD-R

Tele Lenses

Fujinon HD 76x 9.3

Fujinon HD 66x 9.5 BESM

Canon 70x 9,5 Digisuper II

Wide Lenses

Fujinon HD 14x4.5mm Super Wide Angle

Normal Lenses

Canon & Fujinon HD

AUDIO & INTERCOM Specs

Audio Switcher

Allen & Heath MixWizard3 16:2

ISDN codecs

Glensound GS-GC25

Stereo monitoring

Genelec, Fostex

Intercom

DRAKE 4000 Series with 3 panels

Beltpacks

4x wired beltpacks - 2 channels

#SNG02HD / #OB4HD

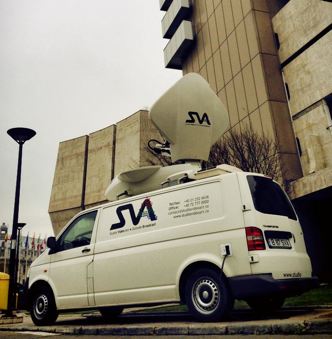

#SNG01HD is our first SNG. It evolved from a single chain SD SNG to a full redundancy in HD. It was built and integrated by our friends at NDSatCom. Now, dual chain redundancy provides 0% signal loss, no matter the event or the weather conditions. Mounted on a Volkswagen Transporter T5, #SNG01HD can cover long distances in short time and can fit in narrow areas.

SNG - ROU-015
